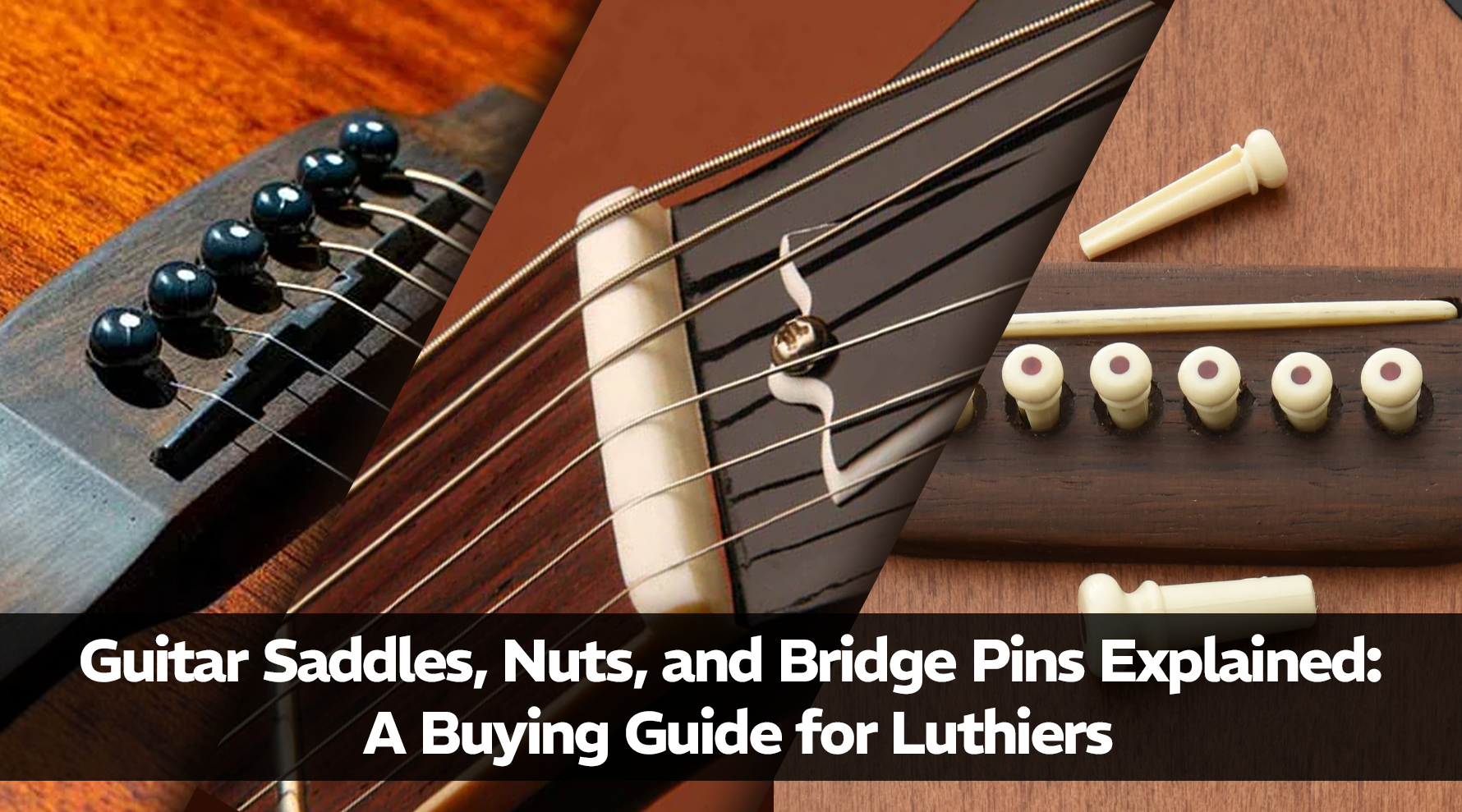

Guitar Saddles, Nuts, and Bridge Pins Explained: A Buying Guide for Luthiers

Saddle, nut, and bridge pin are the three tiny components that play a critical role in determining the tone, sustain, and string action of an acoustic guitar. Bone is the ideal choice of material for each component as compared to any other synthetic material as it is a better transmitter of string vibrations than any plastic or synthetic substitute, but the type of material used in bridge pins, i.e., bone, rosewood, ebony, or brass, impacts whether a guitar sounds bright or warm. For builds and repairs, choose oversized blanks for a custom fit and pre-slotted parts for a fast, accurate replacement.

Saddles, nuts, and bridge pins are three of the smallest parts on a guitar and three of the most common sources of tone complaints on a luthier’s repair bench. Each one sits at a point where string vibration transfers into the instrument, so a poorly fitted or low-grade part can flatten sustain, throw off intonation, or leave a guitar sounding thin no matter how good the tonewood underneath it is. For luthiers or those who wish to construct guitars themselves in regards to the function of each piece and which pieces of material are worth their money, it avoids wasted materials, incorrect sizes, and further trips to the hardware box.

What Do Saddles, Nuts and Bridge Pins Do on a Guitar?

Each part does a distinct mechanical job, even though all three affect tone together. It is important to know the difference before making the purchase as the guitar saddle, guitar nut, and the set of bridge pins are sold in entirely different ways.

What Does a Guitar Saddle Do?

Acoustic guitar saddle is found inside a slot on the bridge of the instrument and serves as the point where the energy from the string makes its first contact with the soundboard. The bone acoustic guitar saddle is highly efficient at transmitting string vibrations, which is why most luthiers consider this to be the single greatest tone upgrade you can have.

What Does a Guitar Nut Do?

Bone Nut on guitar is found at the headstock end of the fingerboard where strings are spaced and their height is set above the first fret. Bone nut for guitar, whether it is an acoustic guitar nut or an electric guitar nut, will ensure better tone and tuning.

What Do Bridge Pins Do?

The bridge pins on guitars secure the ball end of each string to the bridge. While not only securing the strings, acoustic guitar bridge pins affect break angle and pressure on the saddle. This is the reason for which guitar pin replacement is one of the most common inexpensive modifications recommended by luthiers.

Bone vs. Synthetic: Which Saddle and Nut Material Sounds Best?

The material itself is the determining factor in discerning whether there is any significant improvement in the tone or just a waste of money. Bone is still the standard due to its higher density, making it transmit vibrations with minimal energy loss compared to other materials and offering increased clarity and sustain in the sound produced by the guitar saddle and guitar nut. Unbleached bone is more dense than the bleached one, which is why it is favored by many luthiers for nut and saddle blanks that require meticulous filing. Synthetic materials are the steady, budget-friendly middle ground, while basic stock plastic is the cheapest route, but it usually dampens sustain and can also wear in uneven ways as time goes on.

Blank or Pre-Slotted? What Should DIY Builders Buy?

The biggest buying mistake DIY builders make is guessing on size instead of measuring. Oversized bone blanks sold unshaped and unslotted give full control to file, sand, and slot a saddle or nut to an exact fit, which is essential for a scratch build or a guitar with a non-standard slot. Pre-slotted, shaped parts save time on a straightforward replacement, but only work if the radius, width, and slot spacing already match the guitar. Another common mistake is forcing an incorrect size pin into an old pinhole, which could potentially crack your bridge instead of holding your string correctly.

What Are the Best Bridge Pins for Acoustic Guitar?

The best bridge pins for acoustic guitar depend on which part of the tone spectrum a builder is trying to bring out. Bone pins add brightness and clarity and hold up well under regular string changes. Ebony and rosewood, two of the same exotic woods used in fingerboards and bridges make pins that add warmth and natural low-mid resonance, a fitting match for builders already working with matching tonewood sets. Brass pins push projection and clarity the hardest, suiting players who need a guitar to cut through a live mix. Whichever material is chosen, matching the pin taper to the bridge’s pinholes matters most; a loose-fitting pin is a common cause of string buzz and slipped tuning.

Exotic Wood Zone’s Jobois-made nuts, saddles, and bridge pins are available as both oversized blanks for custom shaping and pre-slotted, ready-to-install parts, so builders can buy to the exact stage of their project.

Frequently Asked Questions

1. What is the difference between a guitar saddle and a guitar nut?
   A guitar saddle lives in the bridge and somehow moves string vibration over to the soundboard, while the guitar nut, at the headstock end of the fingerboard, sets string spacing and also the height in a kind of subtle way.
2. Do bridge pin materials really change guitar tone?
   Yes, the bone pins produce brighter sound, the ebony and rosewood pins give warmer sound, while the brass pins give projecting sound.
3. Can a builder install a bone nut or saddle at home?
   At home, a builder that feels secure using files, sandpaper and has a steady hand can carve out a nut or saddle from a nut blank or saddle blank, but due to tight tolerances and for peace of mind would recommend having the final fit checked with a luthier.
4. How would I know if my bridge pins were the incorrect size?
   Pins that are too tall, rattle, or pop out because of string tension are too small. Pins that don’t fit or are hard to get into the bridge are too large.
5. Where can I buy guitar saddles, nuts, and bridge pins for a build?
   Exotic Wood Zone stocks bone saddles, bone nuts, and bridge pins in both blank and pre-slotted formats, alongside the tonewoods used for the rest of a build.

Conclusion, Quick Summary & Next Steps

Saddles, nuts, and bridge pins are small pieces that play an important role in determining the playability and tone of the guitar, but purchasing the correct one depends on how the piece needs to be used. Put simply, bone is better than plastic when it comes to sound quality, blanks are what you need for a customized fit, while prefabricated ones would be ideal for an instant fix, and the choice of material of the bridge pin will depend on the desired sound bright with bone, warm with ebony/rosewood, loud with brass.

Exotic Wood Zone carries genuine bone saddles, bone nuts, and bridge pins in both blank and pre-slotted formats, alongside the exotic woods and tonewoods needed to finish a build from the soundboard to the headstock. Browse the Saddles, Nuts & Bridge Pins collection at Exotic Wood Zone to find the right fit for your next build or repair.
